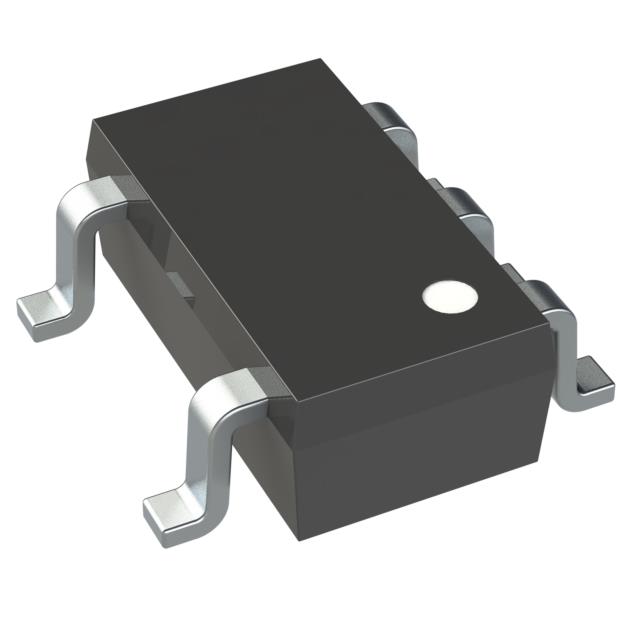

In StockRoHS / ComplianceMC74HC1G00DBVT1G
IC GATE NAND 1CH 2-INP SC74A
Series
74HC
Packaging
Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
Logic Type
NAND Gate
Part Status
Active
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Gates and Inverters |
| Manufacturer | onsemi |
| Series | 74HC |
| Features | - |
| Packaging | Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel® |
| Logic Type | NAND Gate |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Number of Inputs | 2 |
| Voltage - Supply | 2V ~ 6V |
| Number of Circuits | 1 |
| Base Product Number | 74HC1G00 |
| Operating Temperature | -55°C ~ 125°C |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Supplier Device Package | SC-74A |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
Package
-
MSL
-
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
RoHS Compliant
