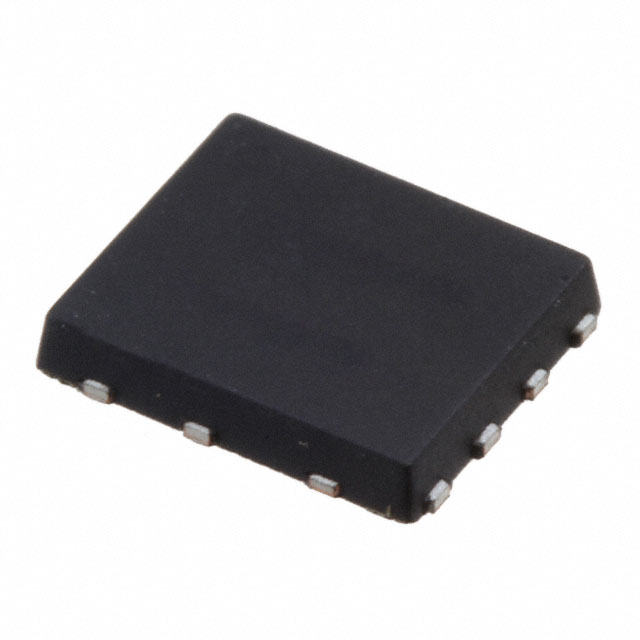

RoHS / ComplianceNTMFD4C20NT3G
MOSFET 2N-CH 30V 9.1A/13.7A 8DFN
Packaging
Tape & Reel (TR)
Technology
MOSFET (Metal Oxide)
Part Status
Obsolete
Power - Max
1.09W, 1.15W
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | FET, MOSFET Arrays |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Obsolete |
| Power - Max | 1.09W, 1.15W |
| Manufacturer | onsemi |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Base Product Number | NTMFD4 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 7.3mOhm @ 10A, 10V |
| Supplier Device Package | 8-DFN (5x6) Dual Flag (SO8FL-Dual-Asymmetrical) |
| Gate Charge (Qg) (Max) @ Vgs | 9.3nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 970pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 9.1A, 13.7A |
Package
-
MSL
-
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
RoHS Compliant
