SCR MODULE 1.6KV 785A MODULERoHS / Compliance
SanRex Corporation

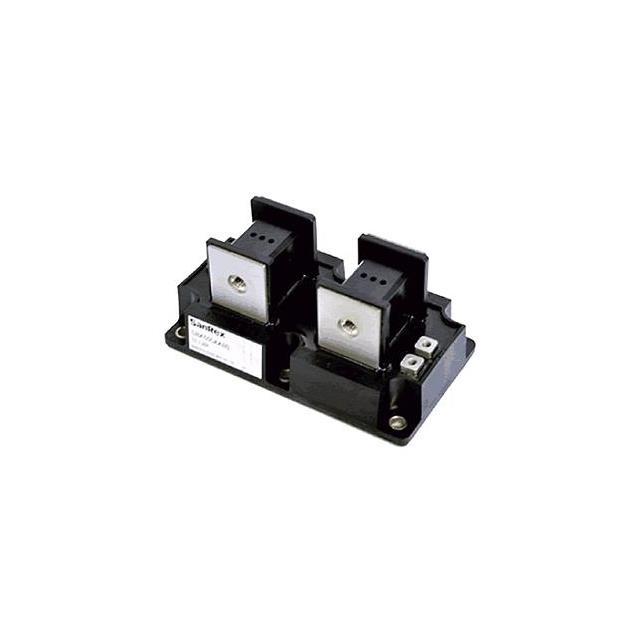

SBA500AA160

SCR MODULE 1.6KV 785A MODULE

Packaging
Tray
Structure
Independent - All SCRs
Part Status
Active
Manufacturer
SanRex Corporation
Datasheet (PDF)

Professional Packaging

Original Packaging

Factory sealed, ESD anti-static tray

Desiccant Protection

Humidity indicator card & silica gel included

Vacuum Sealing

Moisture barrier bag, nitrogen filled

Secure Boxing

Anti-vibration foam, shock-proof labeling

ParameterValue
CategorySCRs - Modules
ManufacturerSanRex Corporation
Series-
PackagingTray
StructureIndependent - All SCRs
Part StatusActive
ManufacturerSanRex Corporation
Mounting TypeChassis Mount
Package / CaseModule
Voltage - Off State1.6 kV
Operating Temperature-40°C ~ 125°C (TJ)
Number of SCRs, Diodes2 SCRs
Current - Gate Trigger (Igt) (Max)200 mA
Current - On State (It (AV)) (Max)500 A
Voltage - Gate Trigger (Vgt) (Max)3 V
Current - On State (It (RMS)) (Max)785 A
Current - Non Rep. Surge 50, 60Hz (Itsm)9100A, 10000A
