In StockRoHS / ComplianceSR05.TCT

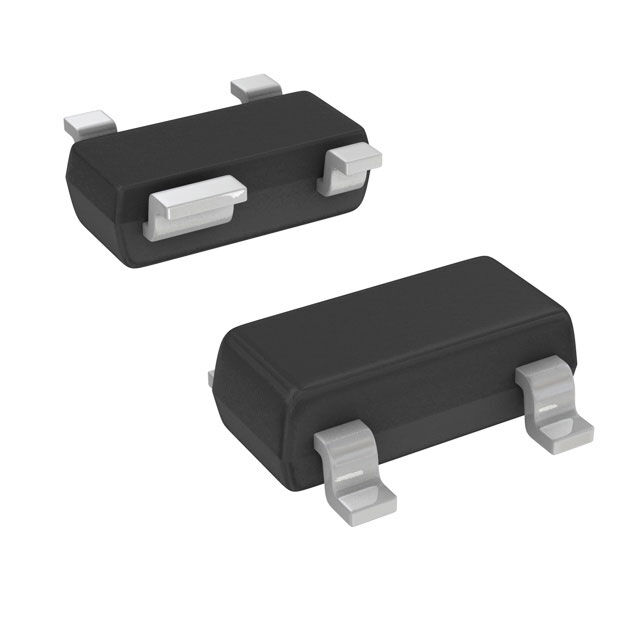

TVS DIODE 5VWM 20VC SOT143
Type
Steering (Rail to Rail)
Series
RailClamp®, SR
Packaging
Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
Part Status
Active
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | TVS Diodes |
| Manufacturer | Semtech Corporation |
| Type | Steering (Rail to Rail) |
| Series | RailClamp®, SR |
| Packaging | Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel® |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | TO-253-4, TO-253AA |
| Power - Peak Pulse | 500W |
| Base Product Number | SR05 |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Power Line Protection | Yes |
| Capacitance @ Frequency | 6pF @ 1MHz |
| Supplier Device Package | SOT-143 |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 20V |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Current - Peak Pulse (10/1000µs) | 25A (8/20µs) |
